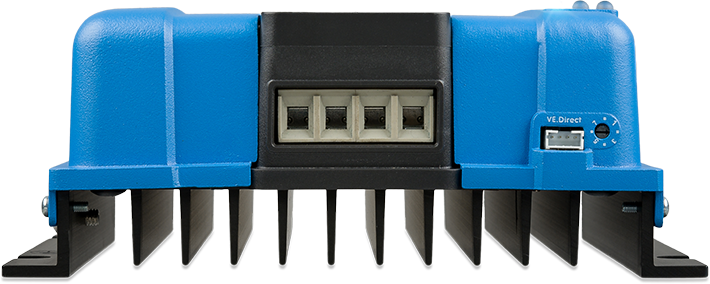

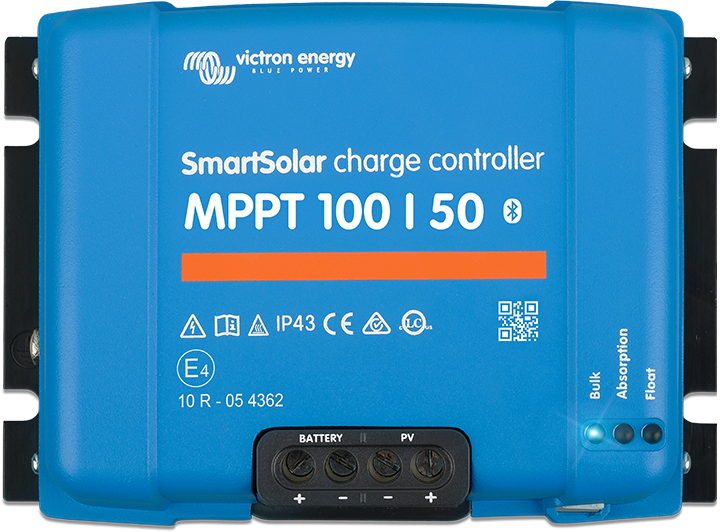

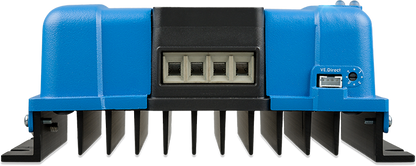

Victron Energy BlueSolar MPPT Solar Charge Controller 100V 50Amp 12/24 Volt
Victron Energy BlueSolar MPPT Solar Charge Controller 100V 50Amp 12/24 Volt
Features
-Bluetooth Smart built-in
-VE.Direct
-Ultrafast Maximum Power Point Tracking (MPPT)
-Advanced Maximum Power Point Detection in case of partial shading conditions
-Outstanding conversion efficiency
-Flexible charge algorithm
-Extensive electronic protection
-Internal temperature sensor
-Optional external battery voltage and temperature sensing via Bluetooth-
-Fully discharged battery recovery function
Specifications
-Battery voltage; 12/24V Auto Select
-Rated charge current; 30A
-Nominal PV power, 12V; 700W
-Nominal PV power, 24V; 1400W
-Maximum PV open circuit voltage; 100V
-Max. PV short circuit current; 60A
-Maximum efficiency; 98%
-Self-consumption; 12V: 30 mA 24V: 20 mA
-Charge algorithm; multi-stage adaptive
-Protection; PV reverse polarity, Output short circuit, Over temperature
-Power terminals; 16 mm / AWG6
