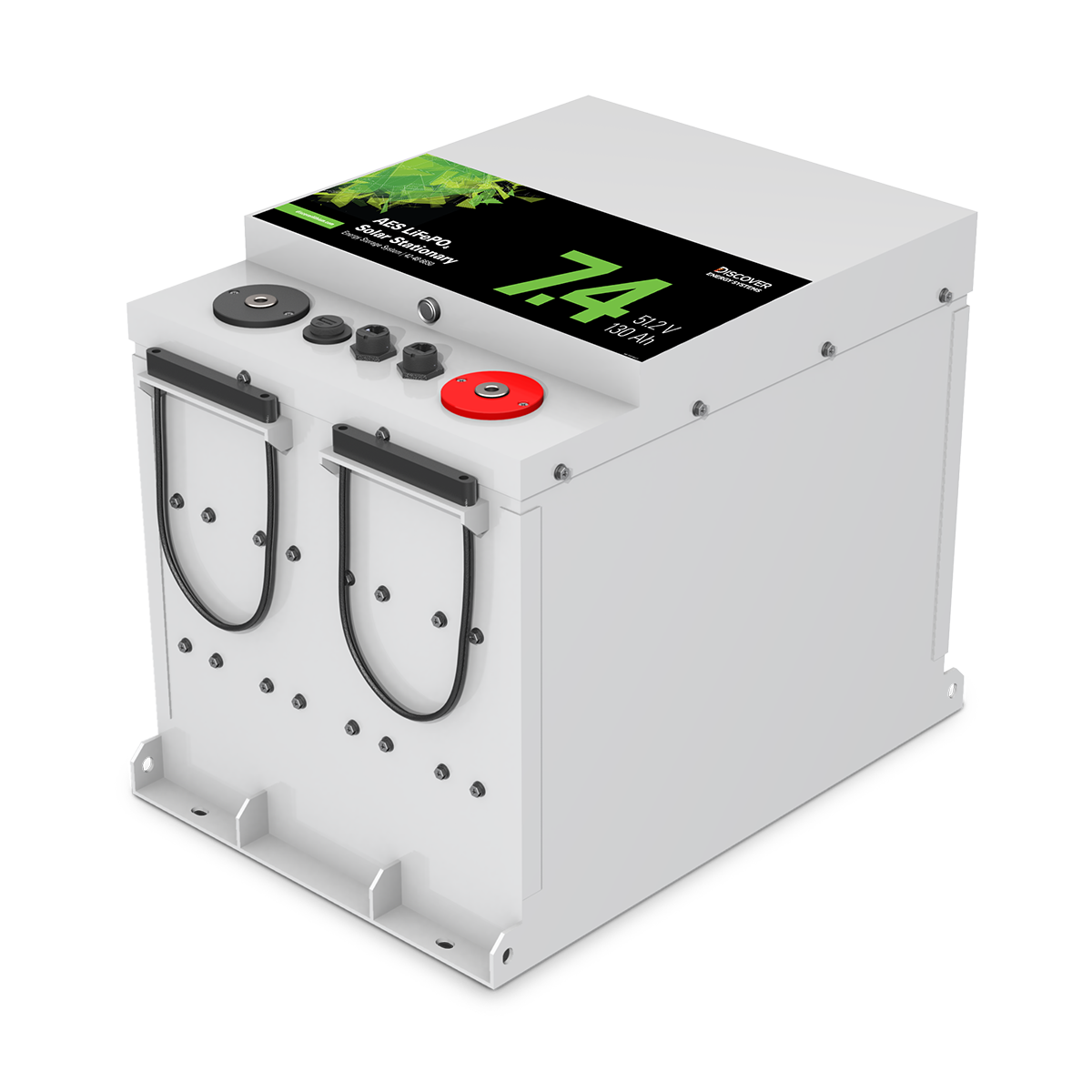

AES LiFePO4 Solar Stationary Battery

FEATURES

LYNK PORT

• Connects battery string to LYNK Gateway
• Multi-battery BMS communication

HIGH-CURRENT BMS

• Field serviceable BMS and fuse protection
• Plug and Play system wide BMS communication
• Sets Voltage, broadcasts SoC and temperature

AES DASHBOARD

• Battery diagnostic software for PC
• Data export kWh, fault logs to PC
• Update battery BMS firmware

ACCESSORIES

LYNK SOLAR GATEWAY

• Integrated closed-loop communications with the world's best inverter chargers
• Plug and play charger configuration

BENEFITS

ENHANCED RUNTIME

• Double the high-current runtime of lead-acid battery
• Up to 100% usable capacity
• Up to 100% depth of discharge

EXTENDED SERVICE LIFE

• 10x the life of lead-acid battery (BCI-06)
• Unlimited Partial State of Charge cycles
• 10-year energy throughput warranty (Requires Registration)

FAST CHARGING

• Up to 5x faster than new lead-acid batteries
• Up to 10x faster than aged lead-acid batteries
• 2X faster charging than C/2 Rated lithium batteries
• 1C continuous charge rate, regardless of SoC

SURGE POWER

• Power for off-grid inverter surge demands
• Up to 3C peak power discharge rate
• 1C continuous discharge rate

HIGH-EFFICIENCY

• Up to 50% more energy efficient than a lead-acid battery
• Up to 98% round-trip efficiency

DYNAMIC PERFORMANCE

• Real-time optimization of the charge rate
• Faster recharge from 0% to 100% SoC than lead-acid battery

PARALLEL POWER

• Easy to parallel more capacity
• Linear scaling of charge, discharge and peak capacity
• Parallel up to 20 batteries or 160 kWh per LYNK device

QUICK INSTALL

• Fast installation. No special tools
• Drop-in lead-acid replacement

RELIABLE AND SAFE

• LiFePO₄ is thermally safe
• Maintenance-free
• Steel case and cover
• IP 55 rated

CERTIFIED QUALITY

Discover® manufacturing facilities are fully certified to ISO 9001/14001 and OSHA 18001 standards.

CERTIFICATION STANDARDS

• IEC 62133
• UL 1973
• UL 9540
• UL 2271
• SGIP
• CEC
• CE
• UN 38.3

SHIPPING CLASSIFICATION

• UN 3480, Class 9 (Lithium batteries)
